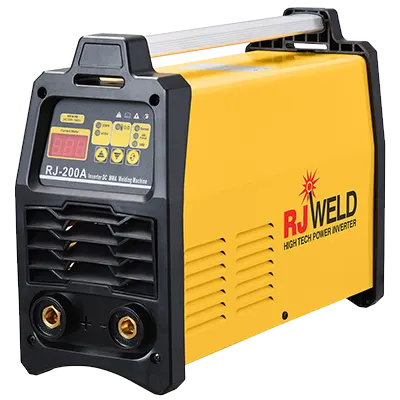

| Input Voltage (V) | 220-415 V ± 15% (1-2 Phase) |
| Output Current (A) | 20 - 200 |
| Rated Input Current (A) | 18 (1-Ph) & 10 (2-PH) |
| IGBT / MOSFET | IGBT |
| Welding Rod Size can be use | 1.6 - 3.15 mm |
| Weight (Kg.) | 5.00 |
| Dimension (mm) | 450 x 210 x 340 |
| Accessories | Welding Cable with Holder |
| Earthing Cable with Clamp |

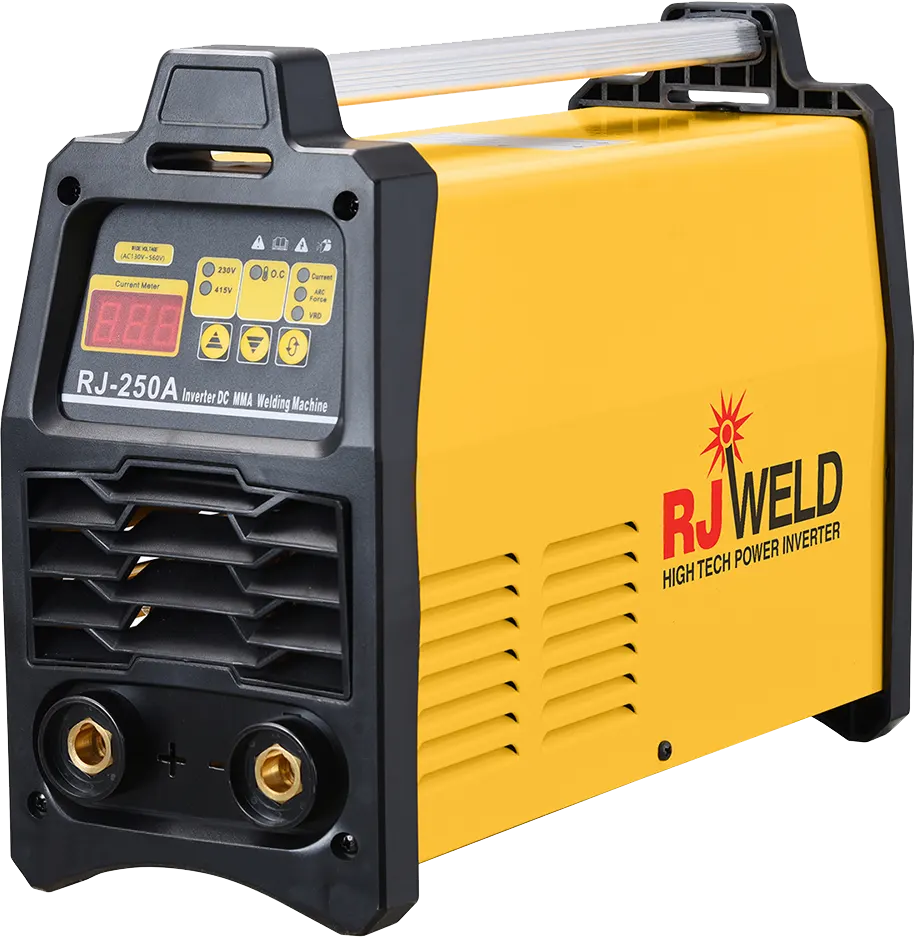

| Input Voltage (V) | 220-415 V ± 15% (1-2 Phase) |
| Output Current (A) | 20 - 250 |
| Rated Input Current (A) | 21 (1-Ph) & 12 (2-PH) |
| IGBT / MOSFET | IGBT |
| Welding Rod Size can be use | 1.6 - 4.0 mm |
| Weight (Kg.) | 5.800 |
| Dimension (mm) | 450 x 210 x 340 |
| Accessories | Welding Cable with Holder |
| Earthing Cable with Clamp |

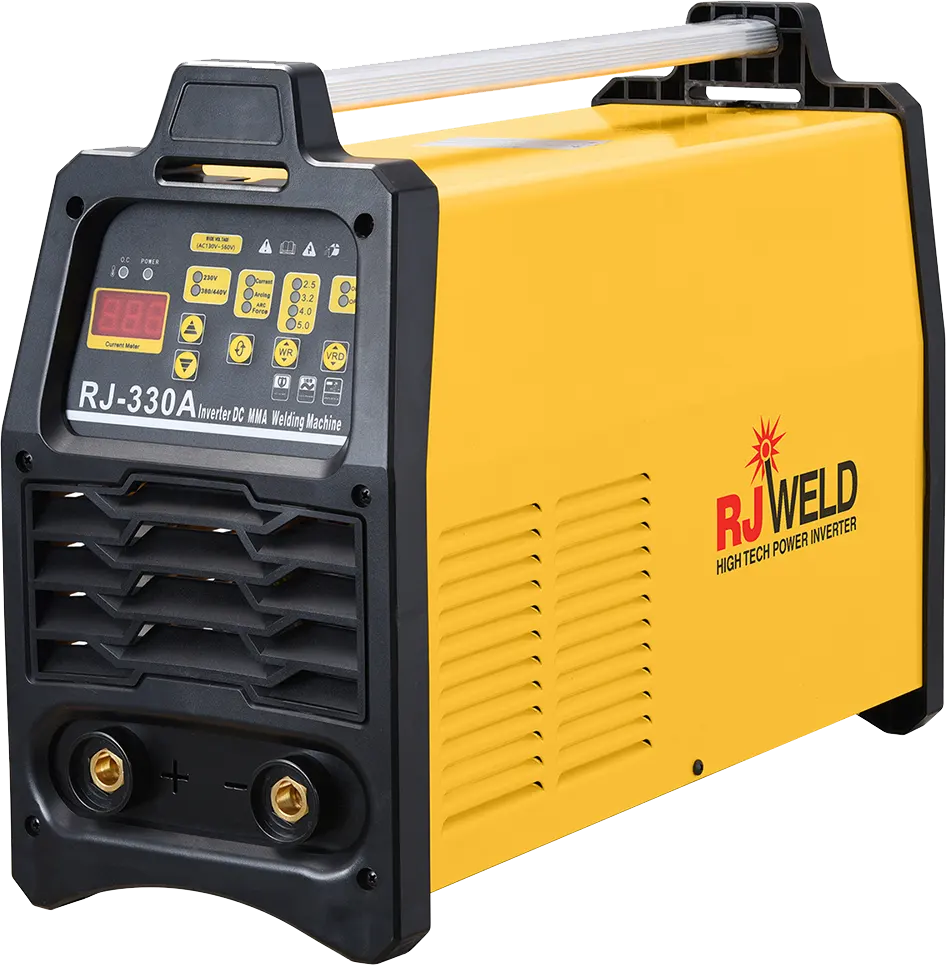

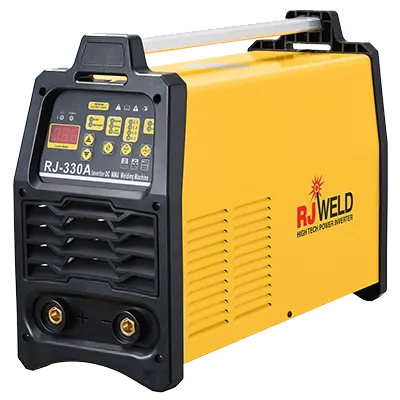

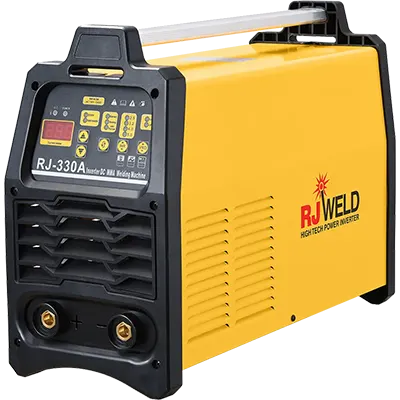

| Input Voltage (V) | 220-415 V ± 15% (1-2-3 Phase) |
| Output Current (A) | 20 - 330 |
| Rated Input Current (A) | 26 (1-Ph), 12.8 (2-PH) & 12.8 (3-PH) |
| IGBT / MOSFET | IGBT |
| Welding Rod Size can be use | 1.6 - 4.0 mm |
| Weight (Kg.) | 7.500 |
| Dimension (mm) | 585 x 260 x 420 |
| Accessories | Welding Cable with Holder |
| Earthing Cable with Clamp |
