ARC Welding Machine

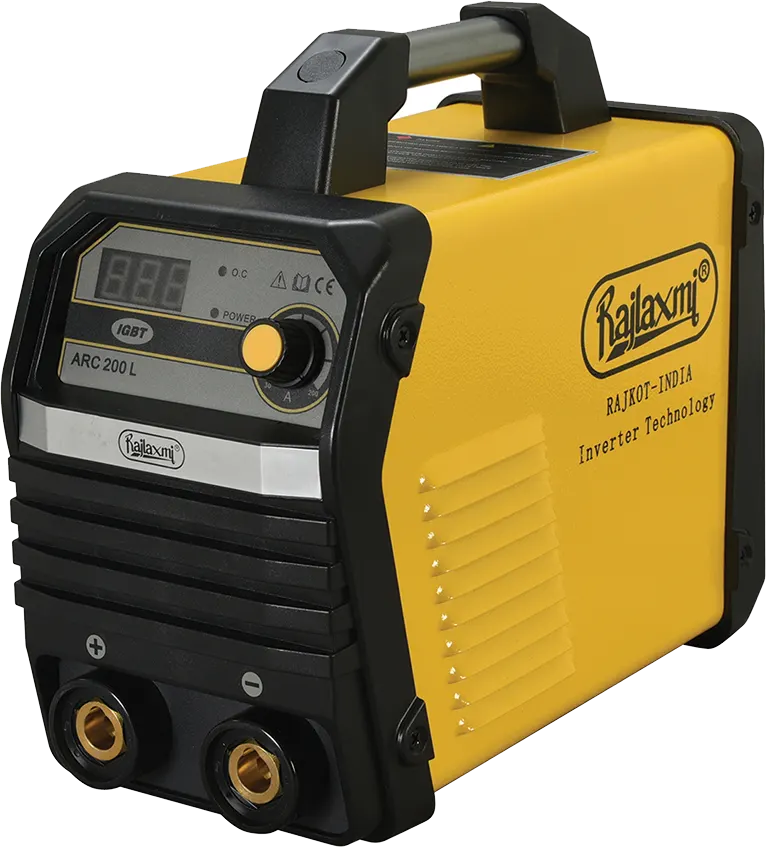

ARC 200 L

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	20 - 200
Rated Input Power (KVA)	6.8
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 3.15
Weight (Kg.)	5.000
Dimension (mm)	400 x 159 x 300
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

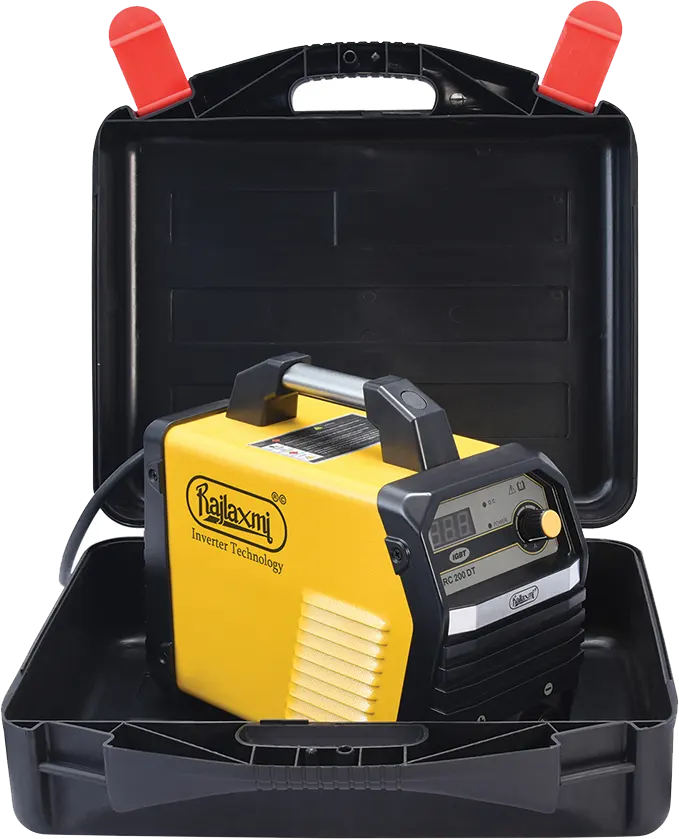

ARC 200 DT

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	20 - 200
Rated Input Power (KVA)	6.8
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 3.15
Weight (Kg.)	3.600
Dimension (mm)	305 x 146 x 258
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

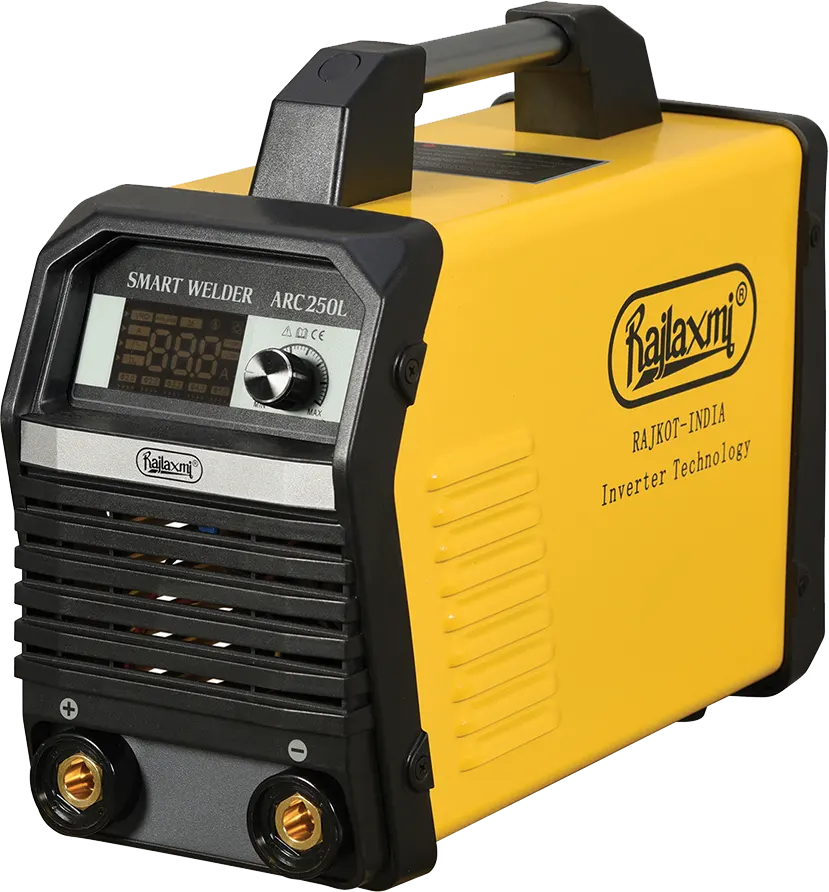

ARC 250 L

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	20 - 250
Rated Input Power (KVA)	10.2
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 4.0
Weight (Kg.)	5.800
Dimension (mm)	400 x 159 x 300
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

ARC 200 T

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	20 - 200
Rated Input Power (KVA)	8.5
IGBT / MOSFET	MOSFET
Welding Rod Size can be use	1.6 - 3.15
Weight (Kg.)	6.500
Dimension (mm)	400 x 159 x 300
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

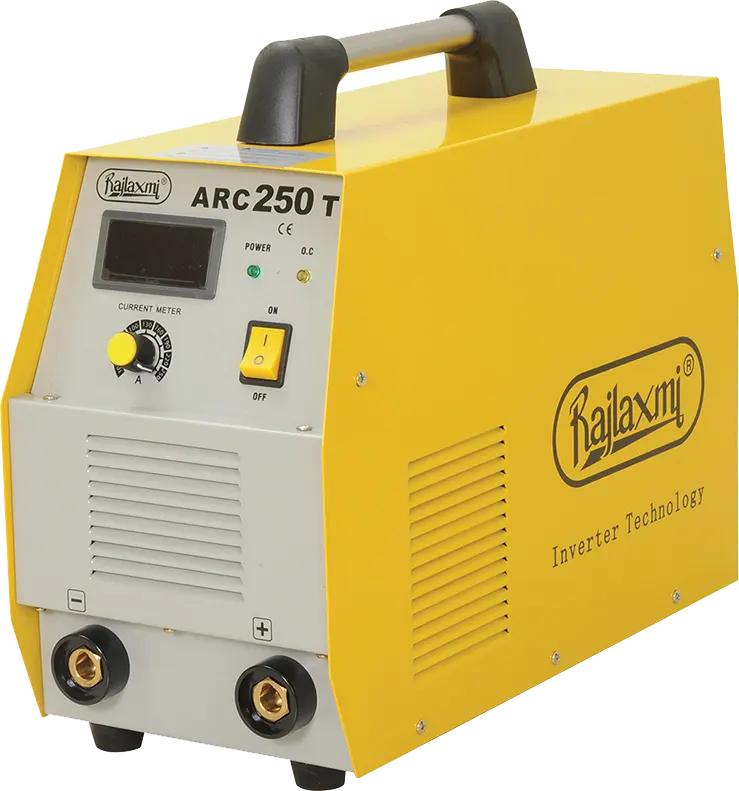

ARC 250 T

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	20 - 250
Rated Input Power (KVA)	10.2
IGBT / MOSFET	MOSFET
Welding Rod Size can be use	1.6 - 4.0
Weight (Kg.)	9.100
Dimension (mm)	450 x 205 x 370
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

ARC 250 G

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	20 - 250
Rated Input Power (KVA)	8.0
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 4.0
Weight (Kg.)	10.800
Dimension (mm)	428 x 219 x 354
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

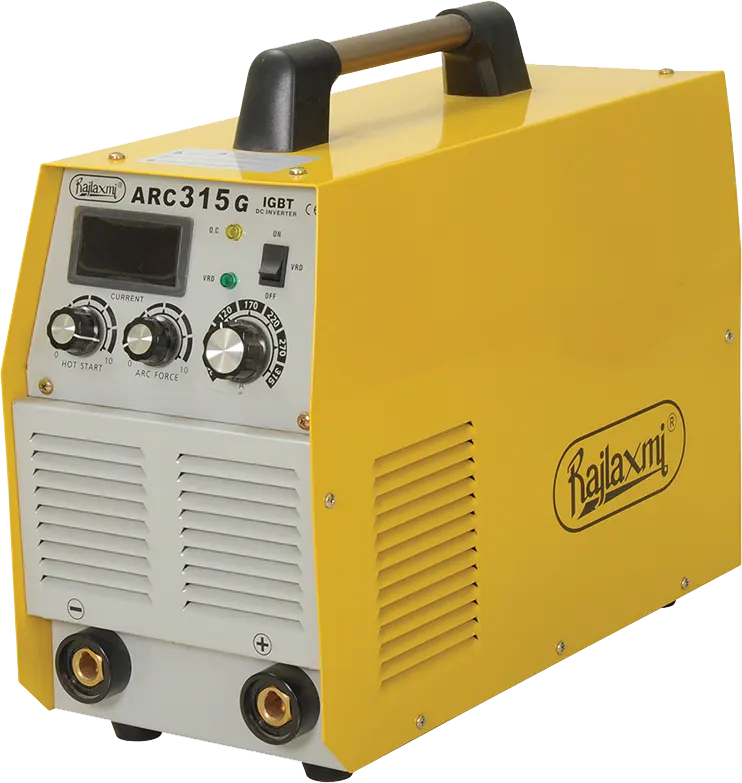

ARC 315 G

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	20 - 315
Rated Input Power (KVA)	10.2
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 4.0
Weight (Kg.)	15.900
Dimension (mm)	490 x 235 x 425
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

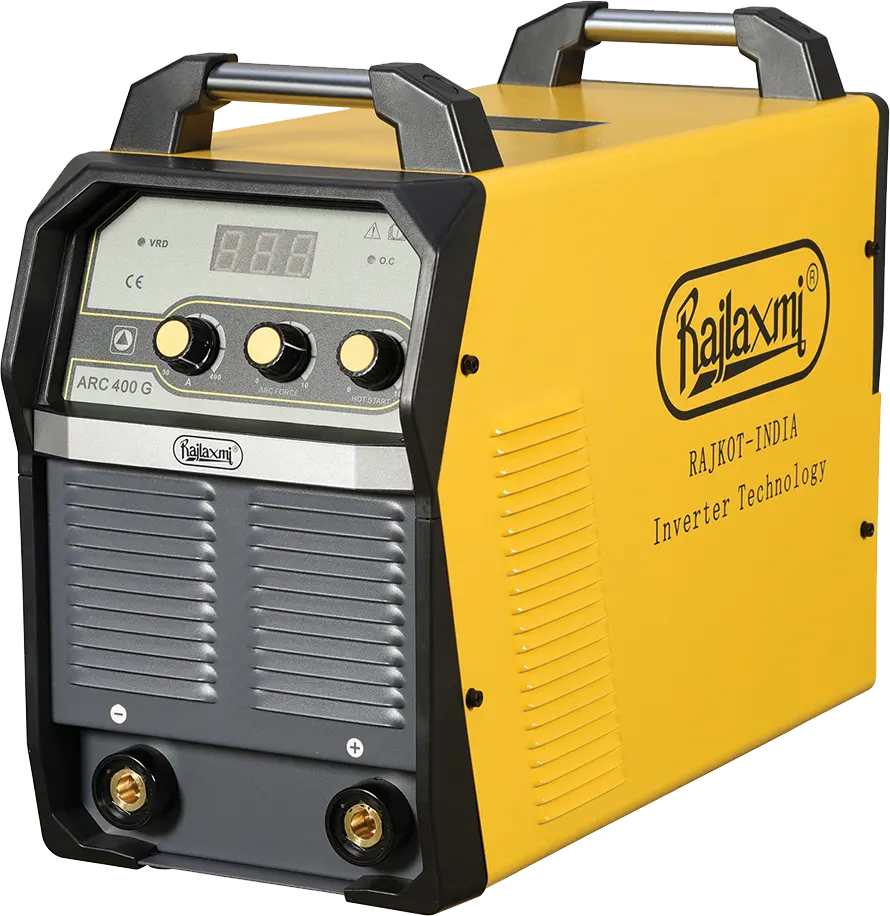

ARC 400 G

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	20 - 400
Rated Input Power (KVA)	15.6
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 5.0
Weight (Kg.)	18.800
Dimension (mm)	541 x 234 x 413
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

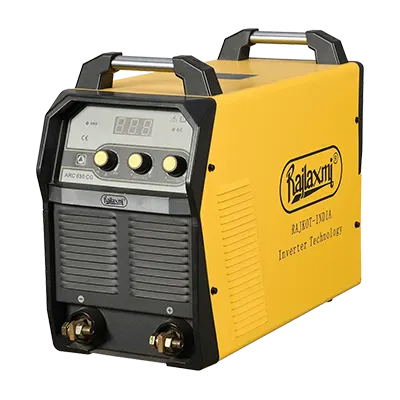

ARC 630 G

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	20 - 630
Rated Input Power (KVA)	25.3
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 5.0
Weight (Kg.)	17.700
Dimension (mm)	541 x 234 x 413
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

ARC MMA Welding Machine

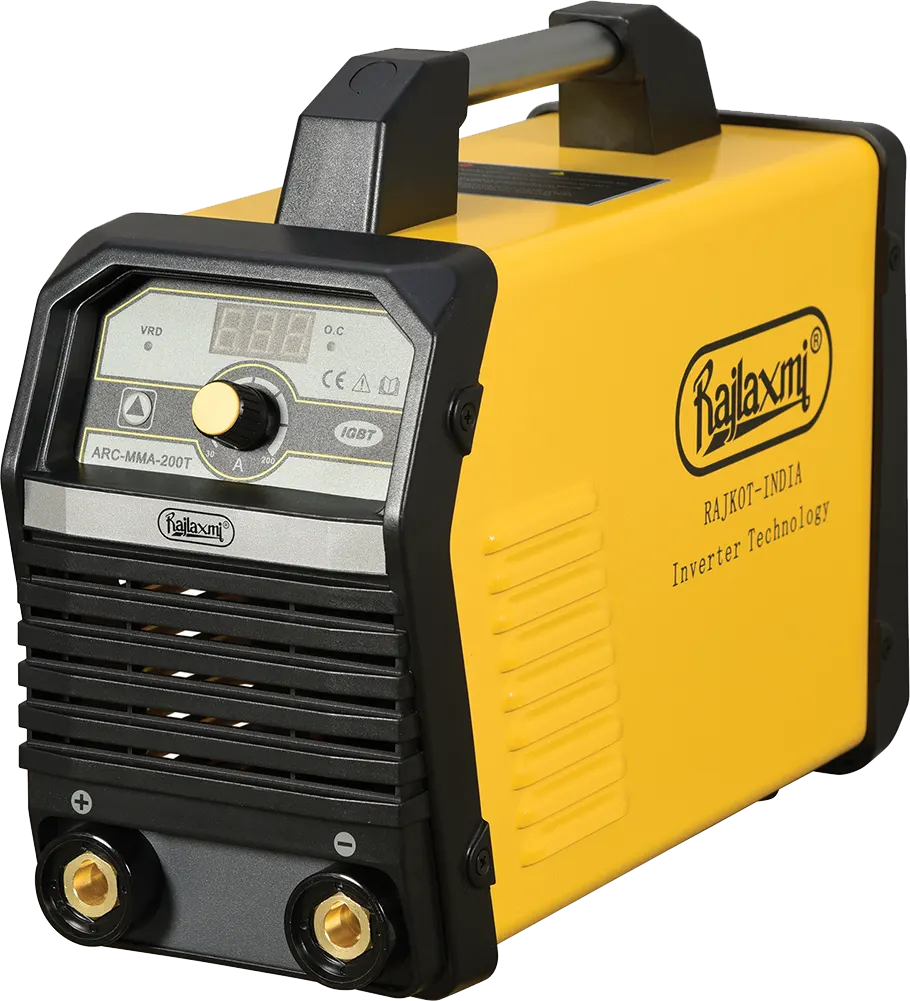

ARC MMA 200 T

Input Voltage (V)	220-415 V ± 15% (1-2 Phase)
Output Current (A)	20 - 200
Rated Input Current (A)	18 (1 PH) & 10 (2 PH)
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 3.15
Weight (Kg.)	5.700
Dimension (mm)	400 x 159 x 300
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

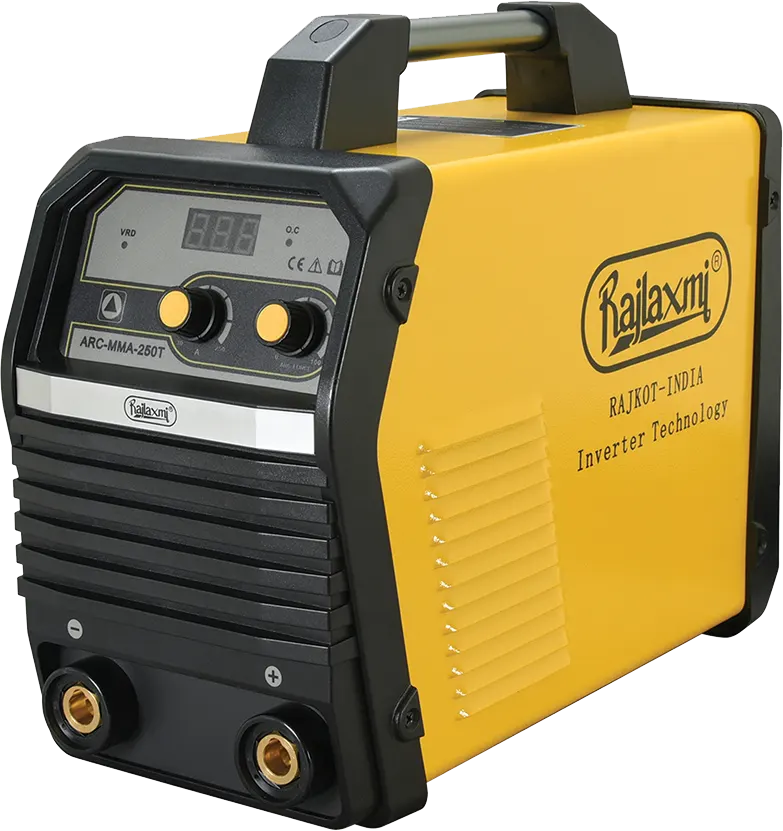

ARC MMA 250 T

Input Voltage (V)	220-415 V ± 15% (1-2 Phase)
Output Current (A)	20 - 250
Rated Input Current (A)	21 (1 PH) & 12 (2 PH)
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 4.00
Weight (Kg.)	7.800
Dimension (mm)	403 x 181 x 324
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

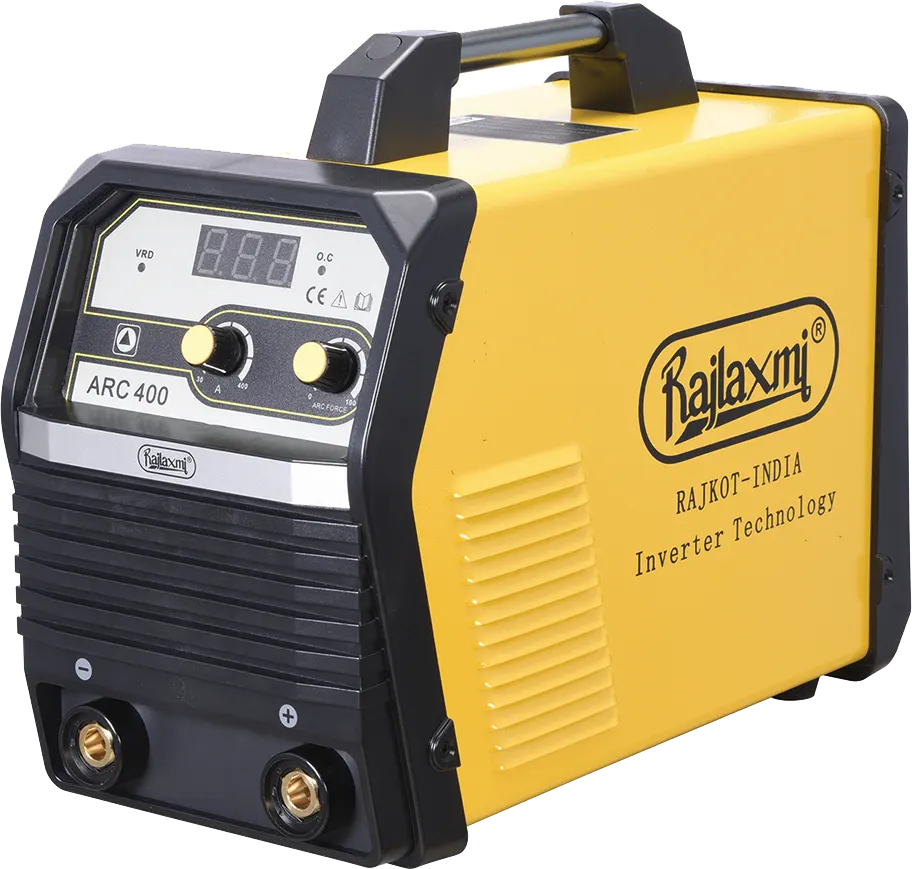

ARC MMA 400 HD

Input Voltage (V)	220-415 V ± 15% (1-2-3 Phase)
Output Current (A)	20 - 400
Rated Input Current (A)	37 (1PH), 12.8 (2PH) & 12.8 (3PH)
IGBT / MOSFET	IGBT
Welding Rod Size can be use	1.6 - 5.00
Weight (Kg.)	10.800
Dimension (mm)	440 x 260 x 330
Accessories	Welding Cable with Holder
Accessories	Earthing Cable with Clamp

TIG / ARC Welding Machine

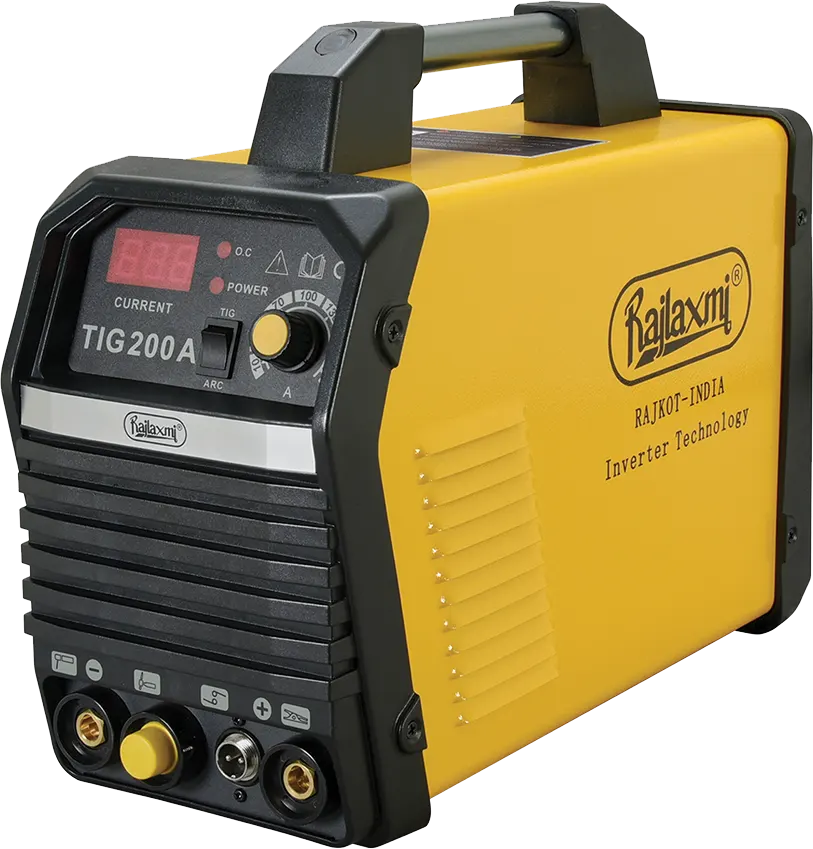

TIG 200 A

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	20 - 200
Rated Input Power (KVA)	5.7
IGBT / MOSFET	IGBT
Welding Rod Size can be use (ARC)	1.6 - 3.15
Weight (Kg.)	6.500
Dimension (mm)	400 x 159 x 300
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Tig Torch

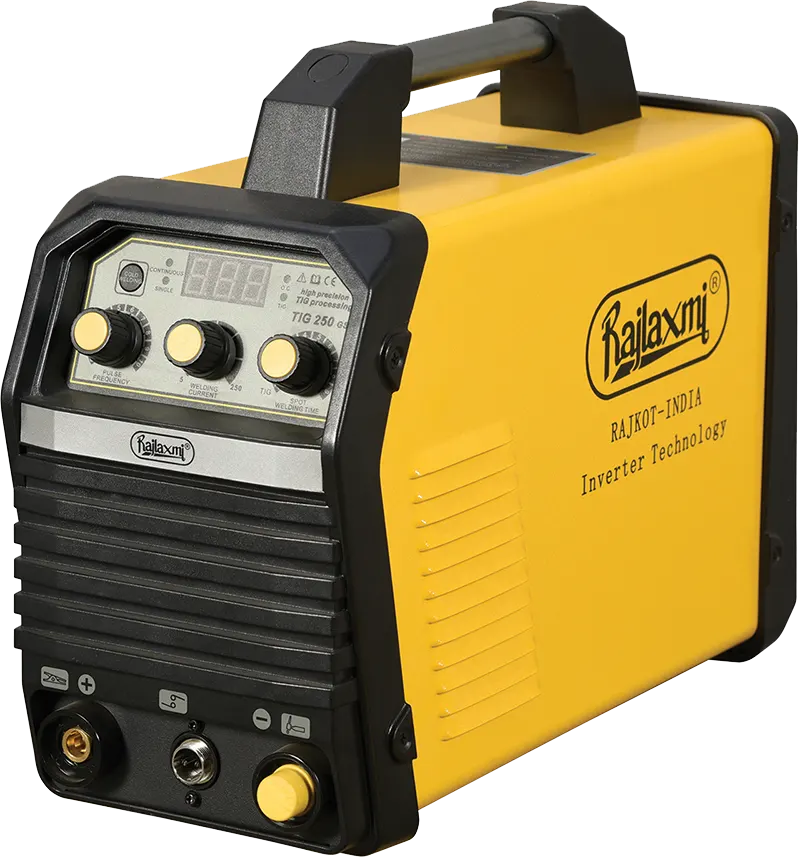

TIG 250 GS

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	20 - 250
Rated Input Power (KVA)	7.1
IGBT / MOSFET	IGBT
Welding Rod Size can be use (ARC)	1.6 - 3.15
Weight (Kg.)	6.600
Dimension (mm)	440 x 260 x 330
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Tig Torch

TIG 300 A

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	20 - 300
Rated Input Power (KVA)	5.5
IGBT / MOSFET	IGBT
Welding Rod Size can be use (ARC)	1.6 - 4.0
Weight (Kg.)	12.500
Dimension (mm)	428 x 219 x 354
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Tig Torch

TIG 400 A

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	20 - 400
Rated Input Power (KVA)	13.2
IGBT / MOSFET	MOSFET
Welding Rod Size can be use (ARC)	1.6 - 4.0
Weight (Kg.)	19.500
Dimension (mm)	585 x 425 x 400
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Tig Torch

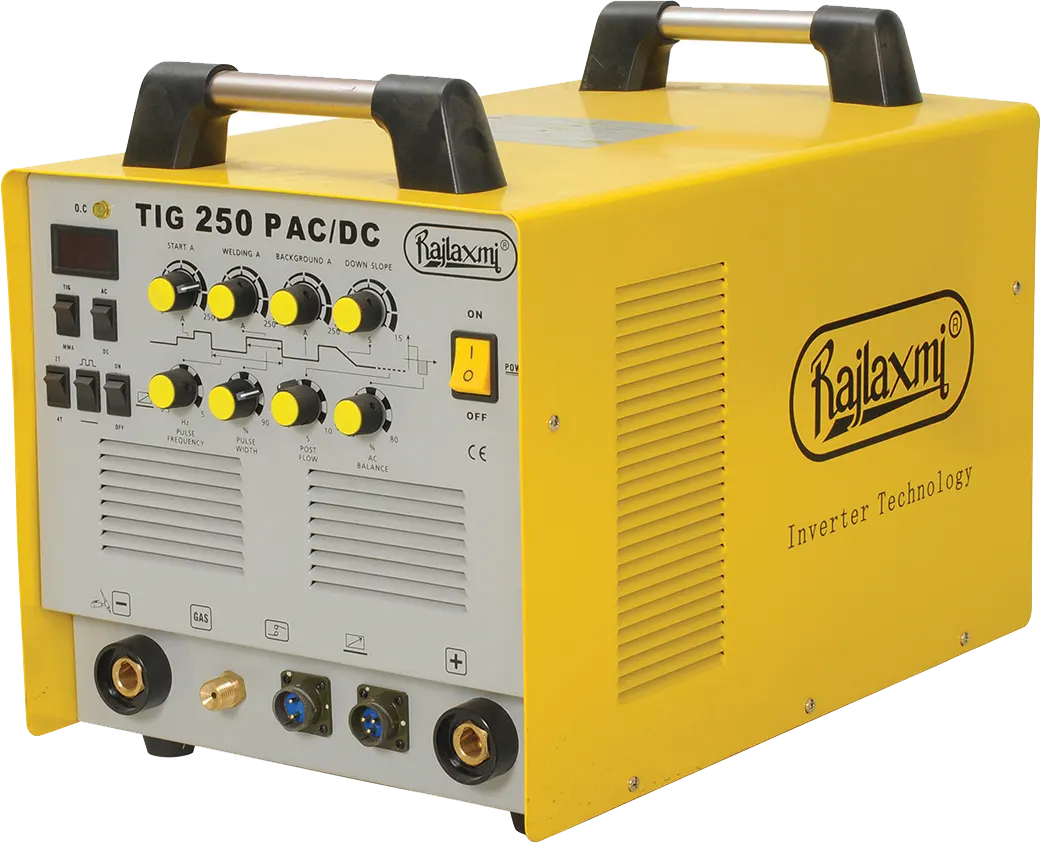

TIG 250 P AC/DC

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	20 - 250
Rated Input Power (KVA)	8.0
IGBT / MOSFET	MOSFET
Welding Rod Size can be use (ARC)	1.6 - 3.15
Weight (Kg.)	19.000
Dimension (mm)	520 x 330 x 360
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Tig Torch

MIG / ARC Welding Machine

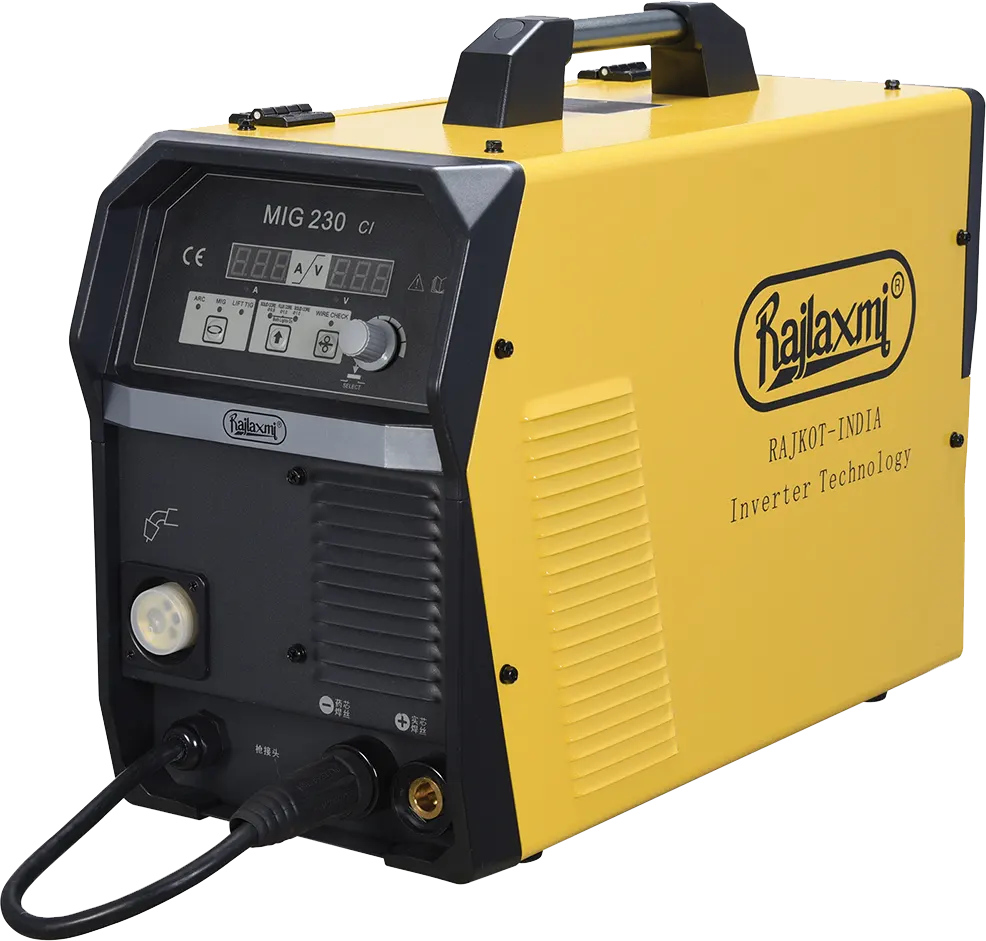

MIG 230 CI

Gas less MIG Welding Machine

Input Voltage (V)	220-415 V ± 15% (1-2 Phase)
Output Current (A)	30 - 230
Rated Input Power (KVA)	6.8
IGBT / MOSFET	IGBT
Welding Wire Size can be use	0.8 - 1.0 mm
Weight (Kg.)	15.500
Dimension (mm)	560 x 240 x 413
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Mig Torch

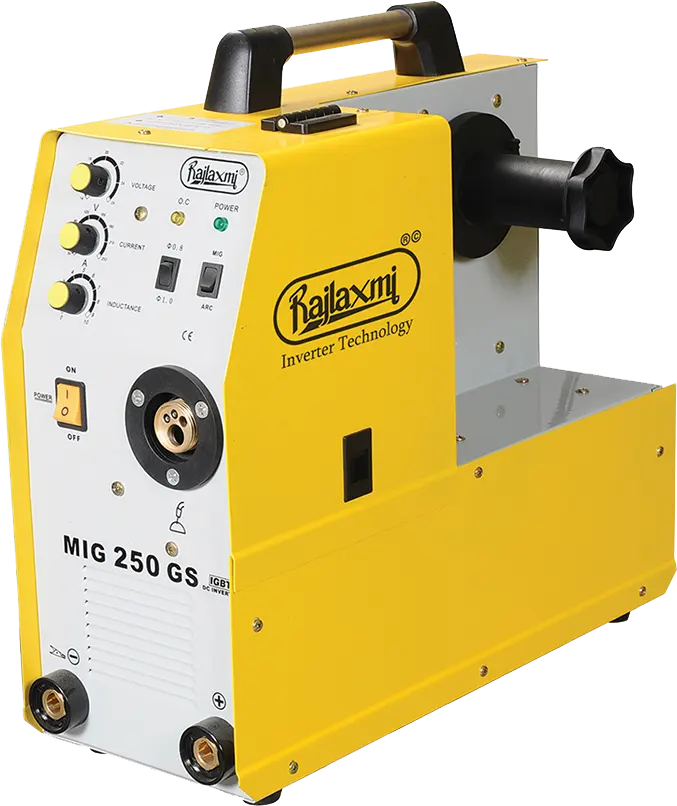

MIG 250 GS

Input Voltage (V)	220 V ± 15% (1-Phase)
Output Current (A)	30 - 250
Rated Input Power (KVA)	7.9
IGBT / MOSFET	IGBT
Welding Wire Size can be use	0.8 - 1.0 mm
Weight (Kg.)	14.500
Dimension (mm)	520 x 207 x 472
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Mig Torch & Co2 Regulator

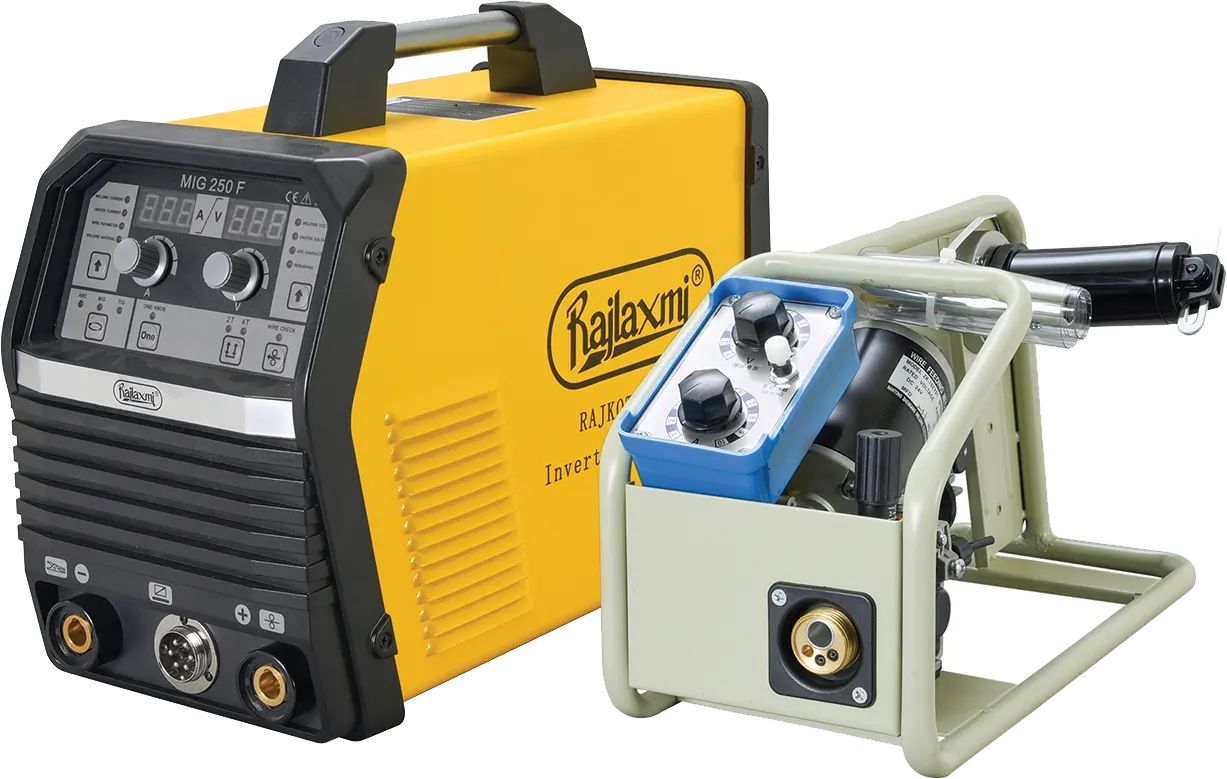

MIG 250 F

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	30 - 250
Rated Input Power (KVA)	10.0
IGBT / MOSFET	IGBT
Welding Wire Size can be use	0.8 - 1.0 mm
Weight (Kg.)	14.200
Dimension (mm)	410 x 205 x 230
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Mig Torch & Co2 Regulator

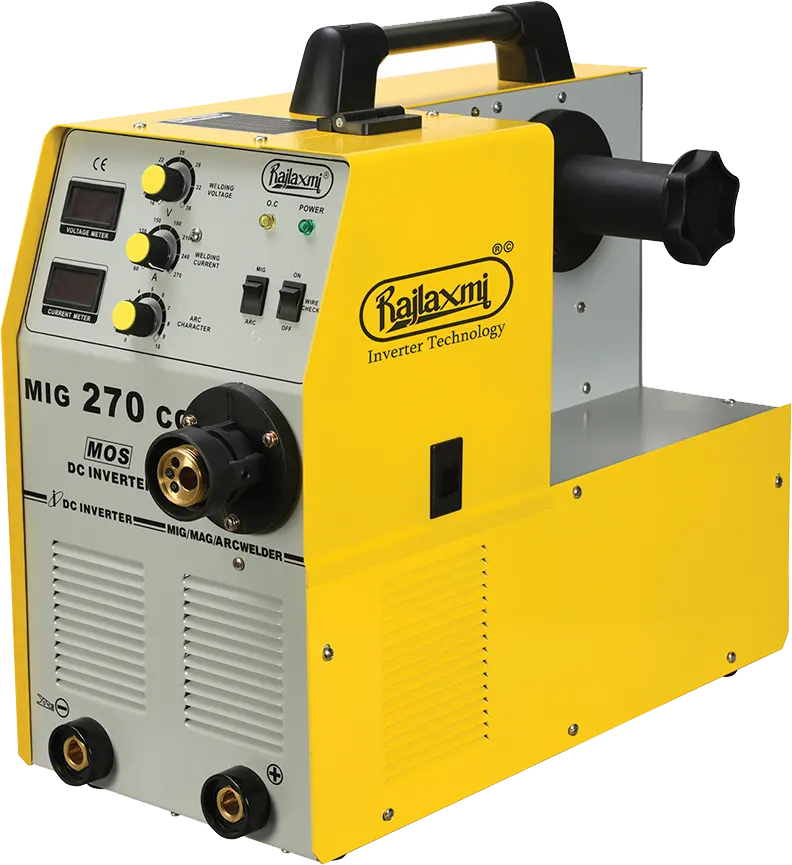

MIG 270 CG

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	30 - 270
Rated Input Power (KVA)	11.0
IGBT / MOSFET	IGBT
Welding Wire Size can be use	0.8 - 1.0 mm
Weight (Kg.)	21 .000
Dimension (mm)	500 x 245 x 430
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Mig Torch & Co2 Regulator

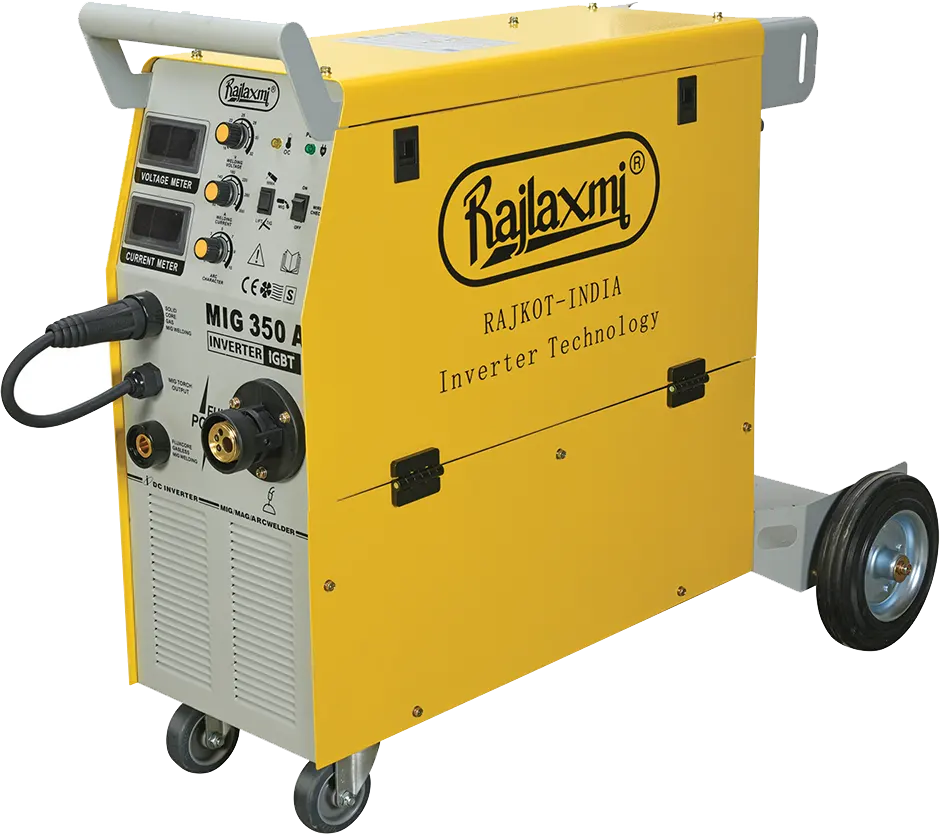

MIG 350 A

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	30 - 350
Rated Input Power (KVA)	13.0
IGBT / MOSFET	IGBT
Welding Wire Size can be use	0.8 - 1.0 mm
Weight (Kg.)	39.500
Dimension (mm)	990 x 470 x 1100
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Mig Torch & Co2 Regulator

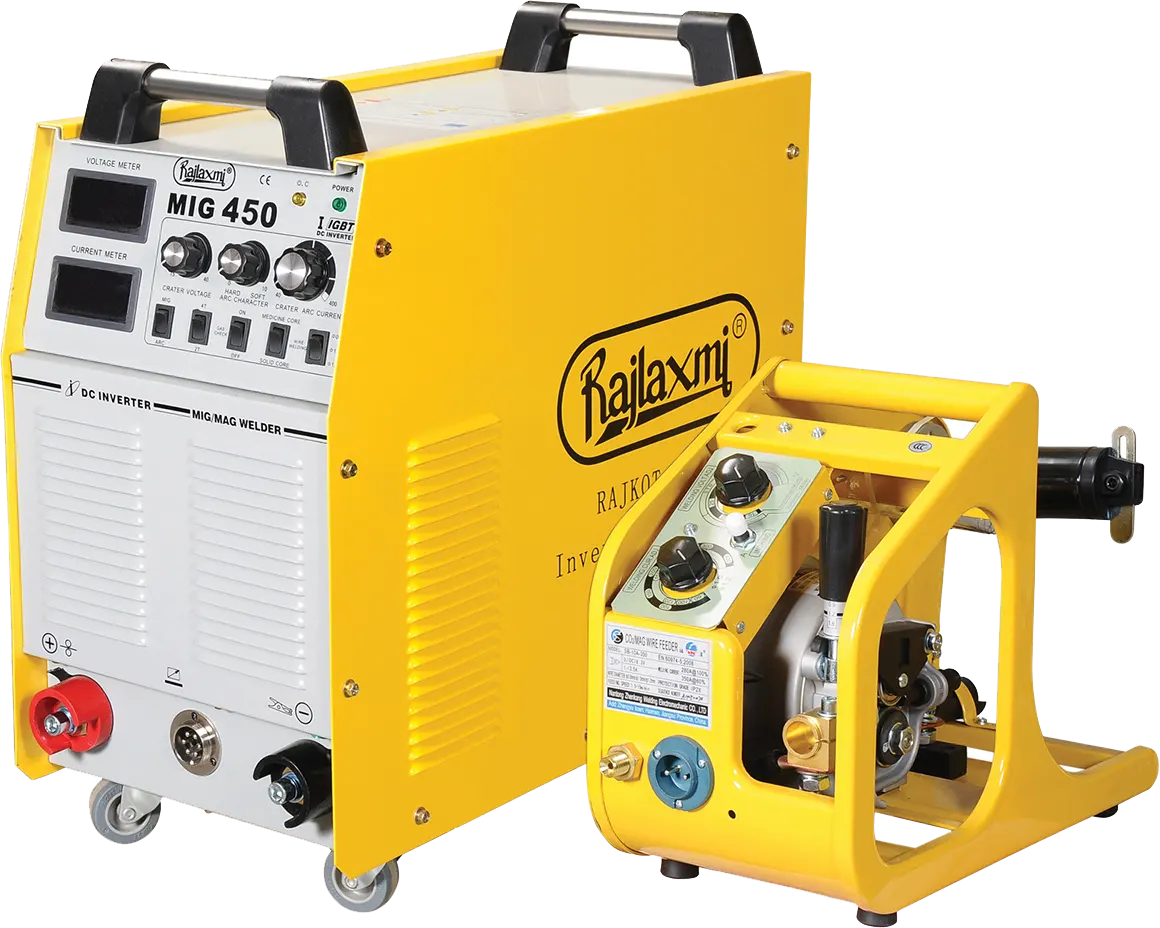

MIG 450 i2

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	30 - 450
Rated Input Power (KVA)	17.0
IGBT / MOSFET	IGBT
Welding Wire Size can be use	0.8 - 1.0 - 1.2 mm
Weight (Kg.)	30.000
Dimension (mm)	560 x 290 x 540
Accessories	Welding Cable with Holder
	Earthing Cable with Clamp
	Mig Torch & Co2 Regulator

Plasma Cutting Machine

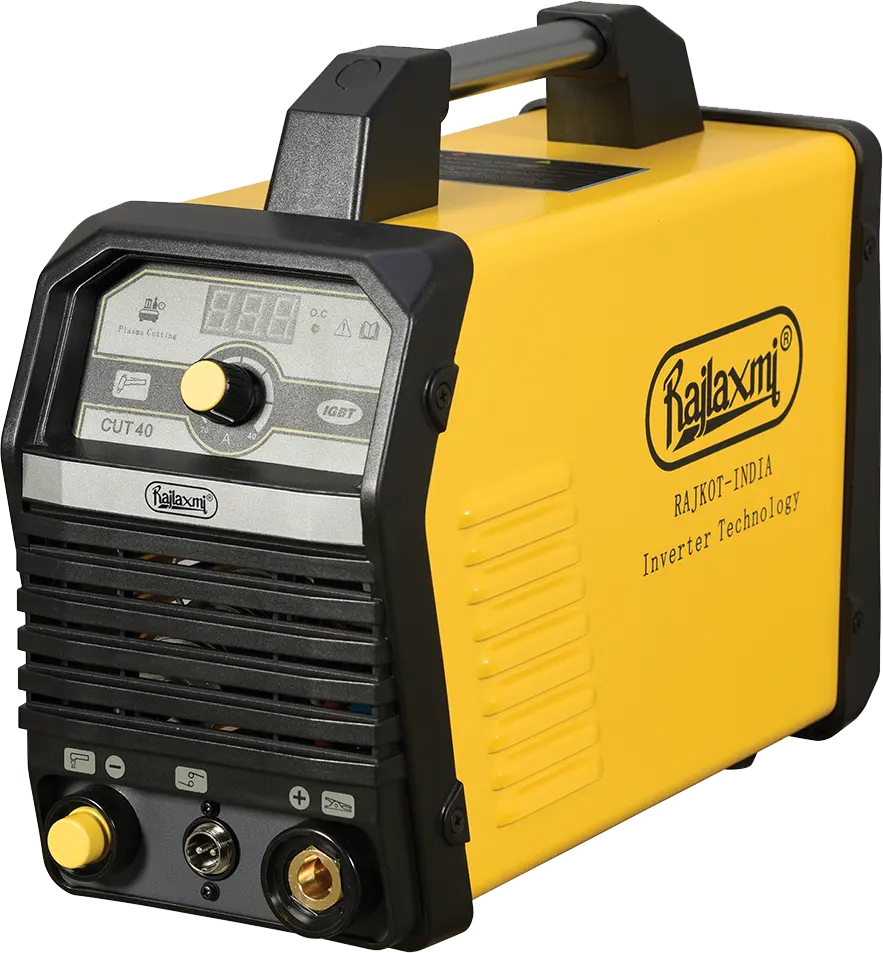

CUT 40

Input Voltage M	220 V ± 15% (1-Phase)
Output Current (A)	10 - 40
Rated Input Power (KVA)	6.2
IGBT / MOSFET	IGBT
Max. Cutting (mm)	8 mm
Weight (Kg.)	6.700
Dimension (mm)	380 x 159 x 300
Accessories	Earthing Cable with Clamp
Accessories	Cutting Torch & Flow Meter

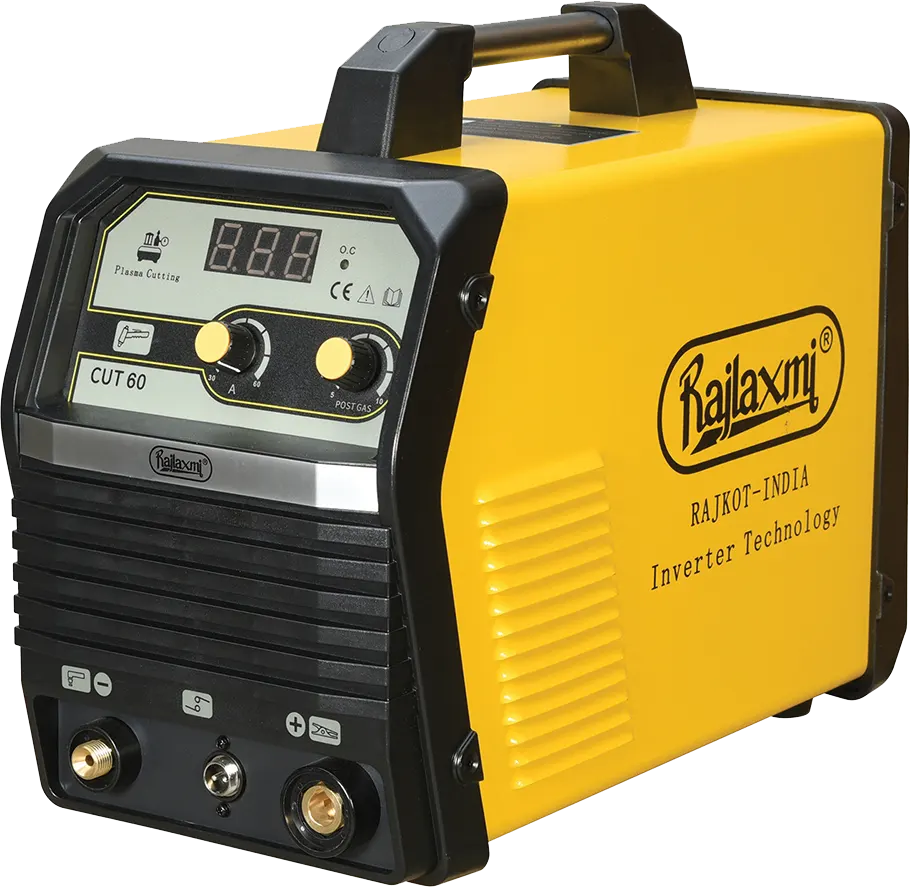

CUT 60

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	10 - 60
Rated Input Power (KVA)	8.9
IGBT / MOSFET	IGBT
Max. Cutting (mm)	18 mm
Weight (Kg.)	12.900
Dimension (mm)	423 x 219 x 354
Accessories	Earthing Cable with Clamp
Accessories	Cutting Torch & Flow Meter

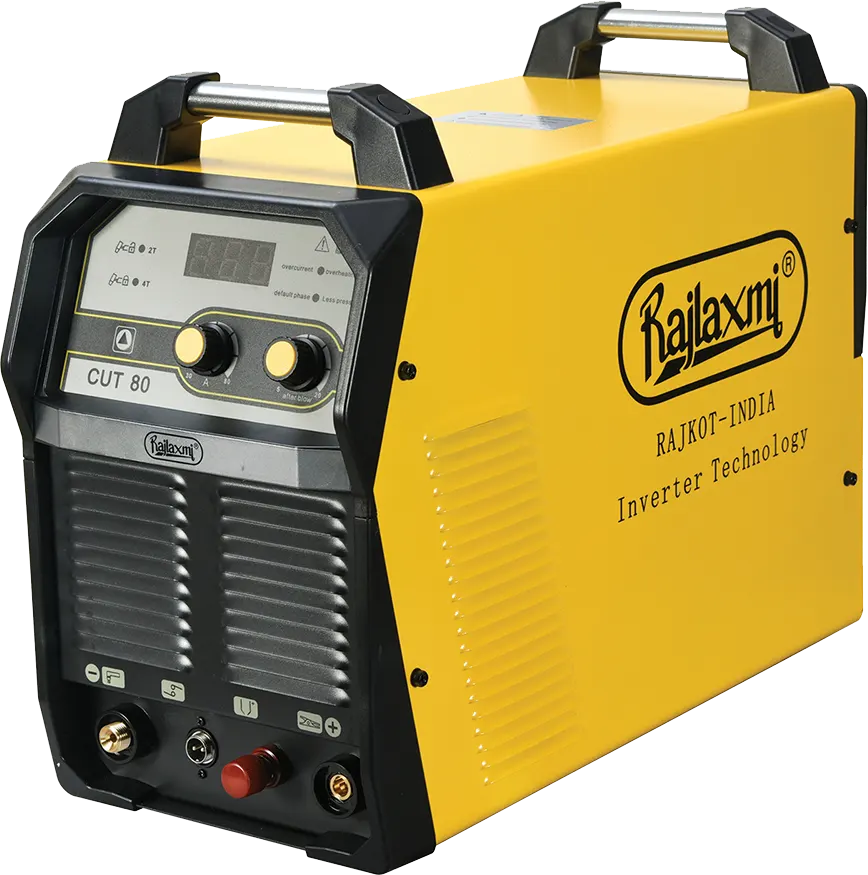

CUT 80

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	10 - 80
Rated Input Power (KVA)	12.5
IGBT / MOSFET	IGBT
Max. Cutting (mm)	20 mm
Weight (Kg.)	24.000
Dimension (mm)	550 x 230 x 400
Accessories	Earthing Cable with Clamp
	Cutting Torch & Flow Meter

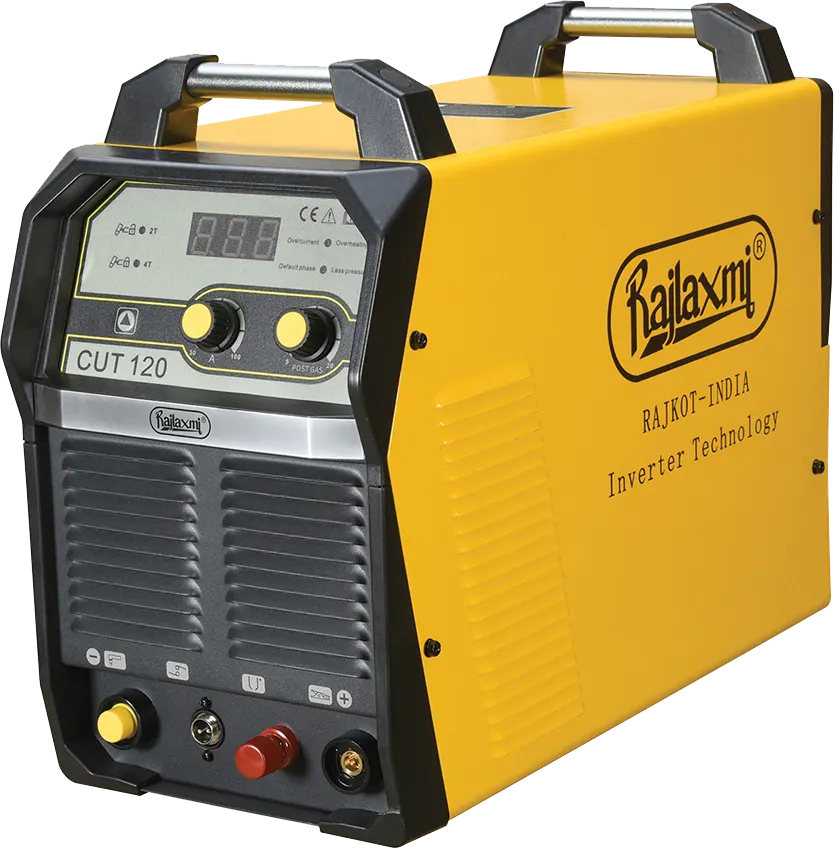

CUT 120

Input Voltage (V)	415 V ± 15% (3-Phase)
Output Current (A)	20 - 120
Rated Input Power (KVA)	13.8
IGBT / MOSFET	IGBT
Max. Cutting (mm)	30 mm
Weight (Kg.)	24.500
Dimension (mm)	545 x 234 x 418
Accessories	Earthing Cable with Clamp
Accessories	Cutting Torch & Flow Meter
